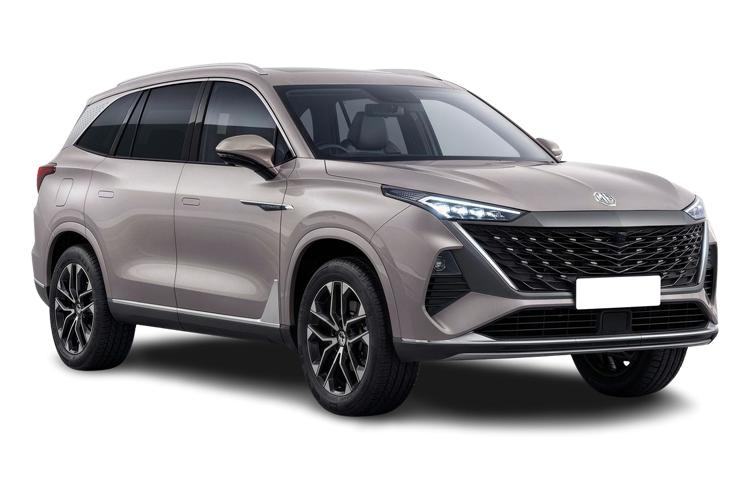

MG MOTOR UK MGS9 ESTATE

Electric Vehicle Data

• Battery Capacity in kWh
  24.7
• Battery Charging Scenario 1 - Charge Time (Mins)
  750
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  2.2
• Battery Charging Scenario 2 - Charge Time (Mins)
  180
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  7
• Usable Battery Capacity
  23.2
• WLTP - EC (kWh/100km) - City
  11.8
• WLTP - EC (kWh/100km) - Comb
  19.8
• WLTP - EC (miles/kWh) - City
  5.2
• WLTP - EC (miles/kWh) - Comb
  3.1
• WLTP - EC AC Weighted (kWh/100km) - Comb
  24.1
• WLTP - EC AC Weighted (miles/kWh) - Comb
  2.6
• WLTP - Equivalent AER (km) - City
  168
• WLTP - Equivalent AER (km) - Comb
  100
• WLTP - Equivalent AER (miles) - City
  104
• WLTP - Equivalent AER (miles) - Comb
  62

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6e-bis

Emissions - PHEV

• WLTP - CO2 Ch Sus (g/km) - Comb
  152
• WLTP - CO2 Weighted (g/km) - Comb
  18

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1496
• Compression Ratio
  13.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  73.5
• Cylinders - Stroke (mm)
  88.1
• Engine Code
  Not Available
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  1 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No

Fuel Consumption - PHEV

• WLTP - FC Ch Sus (l/100km) - Comb
  6.7
• WLTP - FC Ch Sus (l/100km) - Comb - TEL
  6.7
• WLTP - FC Ch Sus (l/100km) - Extra High
  9.1
• WLTP - FC Ch Sus (l/100km) - High
  6.4
• WLTP - FC Ch Sus (l/100km) - Low
  9.6
• WLTP - FC Ch Sus (l/100km) - Medium
  1.3
• WLTP - FC Ch Sus (mpg) - Comb
  42.2
• WLTP - FC Ch Sus (mpg) - Comb - TEL
  42.2
• WLTP - FC Ch Sus (mpg) - Extra High
  31
• WLTP - FC Ch Sus (mpg) - High
  44.1
• WLTP - FC Ch Sus (mpg) - Low
  29.4
• WLTP - FC Ch Sus (mpg) - Medium
  217.3
• WLTP - FC Weighted (l/100km) - Comb
  0.8
• WLTP - FC Weighted (mpg) - Comb
  353.1

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.5
• Badge Power
  299
• Based On ID
  Not Available
• Coin Description
  TGI PHEV
• Coin Series
  Premium
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  44D
• Manufacturers Corrosion Perforation Guarantee - Years
  7
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  84
• NCAP Child Occupant Protection %
  85
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  74
• NCAP Safety Assist %
  77
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  15000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  80000
• Standard manufacturers warranty - Years
  7
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  9.6
• Engine Power - BHP
  299
• Engine Power - KW
  220
• Engine Power - RPM
  5500
• Engine Torque - LBS.FT
  287
• Engine Torque - MKG
  39.8
• Engine Torque - NM
  390
• Engine Torque - RPM
  4000
• Top Speed
  124

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  245/50 R20
• Tyre Size Rear
  245/50 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  Not Available
• Height (including roof rails)
  1778
• Length
  4983
• Wheelbase
  2915
• Width
  1967
• Width (including mirrors)
  2237

Weight and Capacities

• Fuel Tank Capacity (Litres)
  65
• Gross Vehicle Weight
  2717
• Luggage Capacity (Seats Down)
  1026
• Luggage Capacity (Seats Up)
  332
• Max. Loading Weight
  557
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  2000
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2160
• No. of Seats
  7
• Turning Circle - Kerb to Kerb
  11.5
