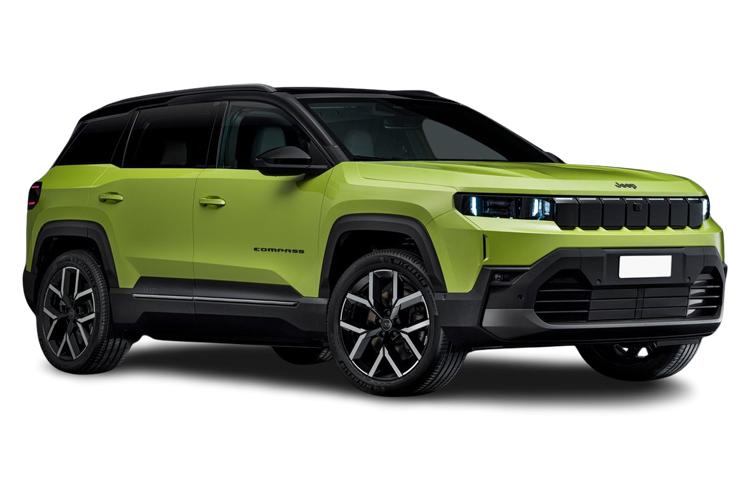

JEEP COMPASS SW

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  21
• Battery Charging Scenario 1 - Charge Time (Mins)
  173
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  7
• Battery Charging Scenario 2 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 2 - Percentage Change
  Not Available
• Battery Charging Scenario 2 - Power Supply - kW
  Not Available
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Rear
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  7
• WLTP - Pure Electric Range (km) - Comb
  80
• WLTP - Pure Electric Range (miles) - Comb
  50

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6e-bis

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  59

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1596
• Compression Ratio
  11.3:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  77
• Cylinders - Stroke (mm)
  85.8
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  7 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No

Fuel Consumption - PHEV

• WLTP - FC Weighted (l/100km) - Comb
  3
• WLTP - FC Weighted (mpg) - Comb
  94.2

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.6
• Badge Power
  195
• Based On ID
  Not Available
• Coin Description
  e-Hybrid Plug In
• Coin Series
  Altitude
• Generation Mark
  3
• Insurance Group 1 - 50 Effective January 07
  33E
• NCAP Adult Occupant Protection %
  80
• NCAP Child Occupant Protection %
  85
• NCAP Overall Rating - Effective February 09
  4
• NCAP Pedestrian Protection %
  74
• NCAP Safety Assist %
  66
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 60 mph (secs)
  8
• Engine Power - BHP
  195
• Engine Power - KW
  143
• Engine Torque - LBS.FT
  221
• Engine Torque - MKG
  30.6
• Engine Torque - NM
  300
• Top Speed
  134

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  225/55 R19
• Tyre Size Rear
  225/55 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height
  1652
• Height (including roof rails)
  1675
• Length
  4552
• Wheelbase
  2795
• Width
  1904
• Width (including mirrors)
  2109

Weight and Capacities

• Fuel Tank Capacity (Litres)
  55
• Luggage Capacity (Seats Up)
  483
• Max. Roof Load
  100
• Max. Towing Weight - Braked
  1500
• Max. Towing Weight - Unbraked
  600
• Minimum Kerbweight
  1999
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.8
