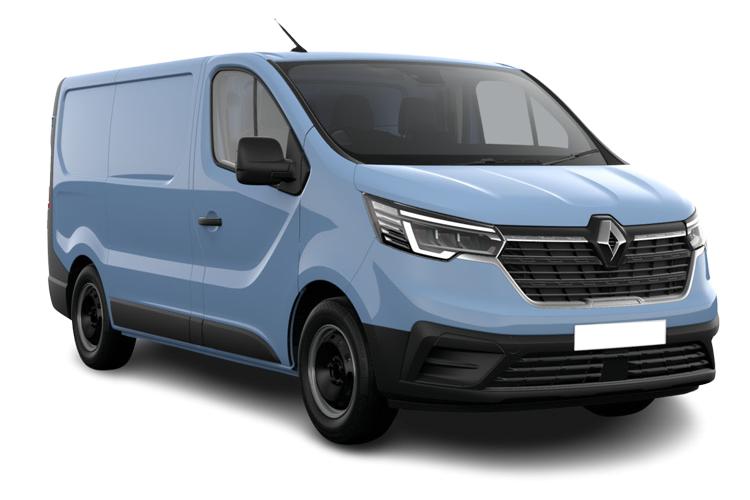

RENAULT TRAFIC SWB DIESEL

Emissions - ICE

• CO
  Not Available
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  182

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  85
• Catalytic Convertor
  Yes
• CC
  1997
• Compression Ratio
  15.1:1
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  9 SPEED
• Manual Transmission
  No
• Number of Valves
  16
• Stroke
  88
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  No
• WLTP - FC (l/100km) - Comb
  6.9
• WLTP - MPG - Comb
  40.9

General

• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.0
• Badge Power
  170
• Based On ID
  Not Available
• Battery Volts
  12
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  VENTILATED DISCS
• Front Suspension
  MACPHERSON STRUTS
• Generation Mark
  3
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR WHEELS
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  4 Star
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Brakes
  DISCS
• Rear Suspension
  COIL SPRINGS
• Relative Height
  H1
• Relative Length
  L1
• Running Cost League Headings
  MEDIUM
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  24000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  3
• Steering
  PAS RACK AND PINION
• Vehicle Homologation Class
  N1

Performance

• 0 to 62 mph (secs)
  10.6
• BHP
  170
• Engine Power KW
  125
• Engine Power RPM
  3500
• Engine Torque LBS.FT
  280
• Engine Torque MKG
  38.7
• Engine Torque NM
  380
• Engine Torque RPM
  1500
• Top Speed
  115

Test Cycles

• Emissions Test Cycle
  WLTP

Tyres

• Alloys?
  Yes
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  215/60 R17
• Tyre Size Rear
  215/60 R17
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  AVENS
• Wheel Type
  17" ALLOY

Vehicle Dimensions

• Front Overhang
  1014
• Height
  1971
• Length
  5080
• Load Deck Height
  552
• Load Height
  1387
• Load Length
  2537
• Load Space Width Between Wheel Arches
  1268
• Load Width
  1662
• Lower Rear Door Width
  1255
• Rear Door Height
  1320
• Rear Overhang
  968
• Side Load Door Height
  1284
• Side Load Door Width
  1030
• Turning Circle - Kerb to Kerb
  12.4
• Turning Circle - Wall to Wall
  12.8
• Upper Rear Door Width
  1320
• Wheelbase
  3098
• Width (excluding mirrors)
  1956
• Width (including mirrors)
  2283

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  80
• Gross Train Weight
  5510
• Gross Vehicle Weight
  3010
• Load Space Volume
  5.8
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  200
• Max. Towing Weight - Braked
  1900
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1885
• No. of Seats
  3
• Payload
  1125
• Plated 2nd Axle
  1650
• Plated Front Axle
  1625
