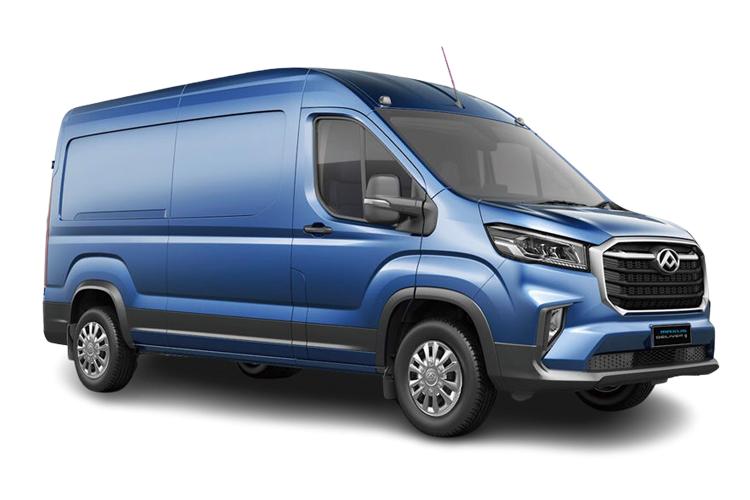

MAXUS DELIVER 9 LWB DIESEL FWD

Emissions - ICE

• HC
  Not Available
• Standard Emissions
  EURO 6

Engine and Drive Train

• Automatic Transmission
  No
• Catalytic Convertor
  Yes
• CC
  1996
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  6 SPEED
• Manual Transmission
  Yes
• Number of Valves
  16
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  No

General

• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.0
• Badge Power
  150
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  EGR
• Front Brakes
  DISCS
• Front Suspension
  MCPHERSON STRUT
• Generation Mark
  1
• Ghost model for valuation purposes
  No
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• Manufacturers Corrosion Perforation Guarantee - Years
  10
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  Not Available
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Brakes
  DISCS
• Rear Suspension
  LEAF SPRINGS
• Relative Height
  H3
• Relative Length
  L3
• Running Cost League Headings
  LARGE
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  18000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  125000
• Standard manufacturers warranty - Years
  5
• Steering
  PAS
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• 0 to 62
  Not Available
• BHP
  150
• Engine Power KW
  110
• Engine Torque LBS.FT
  277
• Engine Torque MKG
  38.3
• Engine Torque NM
  375

Test Cycles

• Emissions Test Cycle
  WLTP

Tyres

• Alloys?
  No
• Automatic Clutch
  No
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Tyre Make
  Not Available
• Tyre Size Front
  215/75 R16
• Tyre Size Rear
  215/75 R16
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Front Overhang
  1020
• Height
  2755
• Height (including roof rails)
  Not Available
• Length
  5940
• Load Deck Height
  Not Available
• Load Height
  2114
• Load Length
  3413
• Load Space Width Between Wheel Arches
  1366
• Load Width
  1800
• Lower Rear Door Width
  1570
• Rear Door Height
  1964
• Rear Overhang
  1160
• Side Load Door Height
  1670
• Side Load Door Width
  1269
• Turning Circle - Kerb to Kerb
  14.8
• Turning Circle - Wall to Wall
  Not Available
• Upper Rear Door Width
  1570
• Wheelbase
  3760
• Width (excluding mirrors)
  2062
• Width (including mirrors)
  2466

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  80
• Gross Train Weight
  6000
• Gross Vehicle Weight
  3500
• Load Space Volume
  12.91
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  120
• Max. Towing Weight - Braked
  2800
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2300
• No. of Seats
  3
• Payload
  1200
• Plated 2nd Axle
  1900
• Plated Front Axle
  1950
