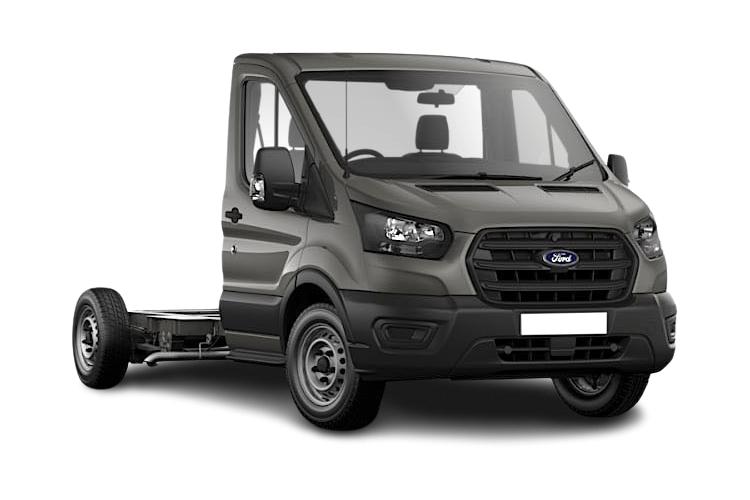

FORD TRANSIT 350 L4 DIESEL FWD

Emissions - ICE

• CO
  Not Available
• CO2
  179
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6

Engine and Drive Train

• Automatic Transmission
  No
• Catalytic Convertor
  Yes
• CC
  1996
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  6 SPEED
• Manual Transmission
  Yes
• Number of Valves
  16
• Valve gear
  DOHC

Fuel Consumption - ICE

• EC
  No
• EC Combined
  41.5
• EC Extra Urban
  42.8
• EC Urban
  39.2

General

• Alternative Fuel Qualifying
  No
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.0
• Badge Power
  130
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  EGR
• Front Brakes
  DISCS
• Front Suspension
  MACPHERSON STRUTS
• Generation Mark
  4
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR WHEELS
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  5 Star
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Brakes
  DISCS
• Rear Suspension
  LEAF SPRINGS
• Relative Height
  H1
• Relative Length
  L4
• Running Cost League Headings
  LARGE
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  25000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  3
• Steering
  RACK AND PINION
• This vehicle is classed as a car for VED purposes
  No
• Timing Belt Interval Frequency - Months
  120
• Timing Belt Interval Mileage
  150000
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• 0 to 62
  Not Available
• BHP
  130
• Engine Power KW
  96
• Engine Torque LBS.FT
  266
• Engine Torque MKG
  36.7
• Engine Torque NM
  360
• Top Speed
  Not Available

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  No
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  235/65 R16
• Tyre Size Rear
  235/65 R16
• Tyre Size Spare
  FULL SIZE
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Front Overhang
  1023
• Height
  2200
• Height (including roof rails)
  Not Available
• Length
  5975
• Load Deck Height
  Not Available
• Load Height
  Not Available
• Load Length
  Not Available
• Load Space Width Between Wheel Arches
  Not Available
• Load Width
  Not Available
• Lower Rear Door Width
  Not Available
• Rear Door Height
  Not Available
• Rear Overhang
  998
• Side Load Door Height
  Not Available
• Side Load Door Width
  Not Available
• Turning Circle - Kerb to Kerb
  14
• Upper Rear Door Width
  Not Available
• Wheelbase
  3954
• Width (excluding mirrors)
  2052
• Width (including mirrors)
  2474

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  70
• Gross Train Weight
  5700
• Gross Vehicle Weight
  3500
• Load Space Volume
  Not Available
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Roof Load
  Not Available
• Max. Towing Weight - Braked
  2800
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1689
• No. of Seats
  2
• Payload
  1811
• Plated 2nd Axle
  2250
• Plated Front Axle
  2000
