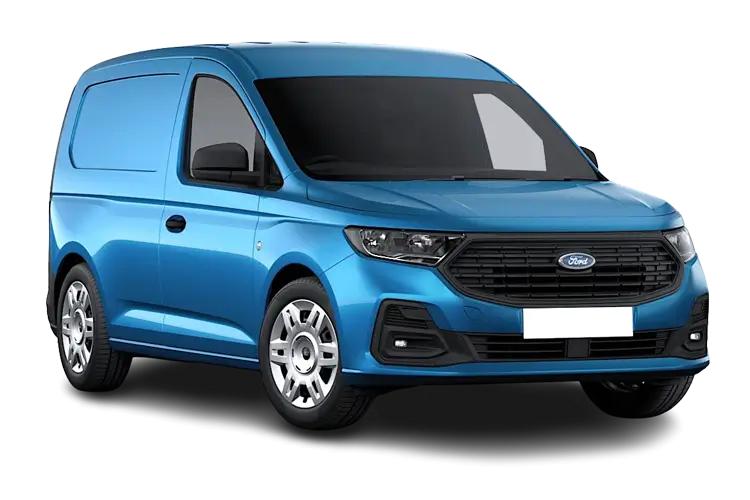

FORD TRANSIT CONNECT 240 L1 PETROL

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  19.7
• Battery Charging Scenario 1 - Charge Time (Mins)
  230
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  7.2
• Battery Charging Scenario 2 - Charge Time (Mins)
  150
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  26
• Battery Charging Scenario 3 - Percentage Change
  5-80
• Battery Charging Scenario 3 - Power Supply - kW
  40
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Front
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  40
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  19.7
• WLTP - EC (kWh/100km) - Comb
  19.4
• WLTP - EC (miles/kWh) - Comb
  3.2
• WLTP - EC AC Weighted (kWh/100km) - Comb
  14.6
• WLTP - EC AC Weighted (miles/kWh) - Comb
  4.3
• WLTP - Equivalent AER (km) - Comb
  115
• WLTP - Equivalent AER (miles) - Comb
  71.4

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6e-bis

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  42

Engine and Drive Train

• Automatic Transmission
  Yes
• Catalytic Convertor
  Yes
• CC
  1498
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Fuel Type
  PETROL/ELECTRIC
• Gears
  6 SPEED
• Manual Transmission
  No
• Number of Valves
  16
• Valve gear
  DOHC

Fuel Consumption - PHEV

• WLTP - FC Weighted (l/100km) - Comb
  1.9
• WLTP - FC Weighted (mpg) - Comb
  151.7

General

• Alternative Fuel Qualifying
  Yes
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  1.5
• Badge Power
  150
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  DISCS
• Front Suspension
  MACPHERSON STRUTS
• Generation Mark
  3
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  5 Star
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  Not Available
• Rear Brakes
  DRUM
• Rear Suspension
  SINGLE LEAF SPRINGS
• Relative Height
  H1
• Relative Length
  L1
• Running Cost League Headings
  SMALL
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  25000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• BHP
  150
• Engine Power KW
  110

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Not Available
• Tyre Size Front
  215/55 R17
• Tyre Size Rear
  215/55 R17
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  17" STEEL

Vehicle Dimensions

• Front Overhang
  890
• Height
  1833
• Length
  4500
• Load Deck Height
  586
• Load Height
  1203
• Load Length
  1520
• Load Space Width Between Wheel Arches
  1230
• Load Width
  1628
• Lower Rear Door Width
  1230
• Rear Door Height
  1122
• Rear Overhang
  855
• Side Load Door Height
  1072
• Side Load Door Width
  703
• Turning Circle - Kerb to Kerb
  11.4
• Wheelbase
  2755
• Width (including mirrors)
  2100

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  50
• Gross Train Weight
  3925
• Gross Vehicle Weight
  2425
• Load Space Volume
  2.5
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Towing Weight - Braked
  1500
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1794
• No. of Seats
  5
• Payload
  631
• Plated 2nd Axle
  1300
• Plated Front Axle
  1180
