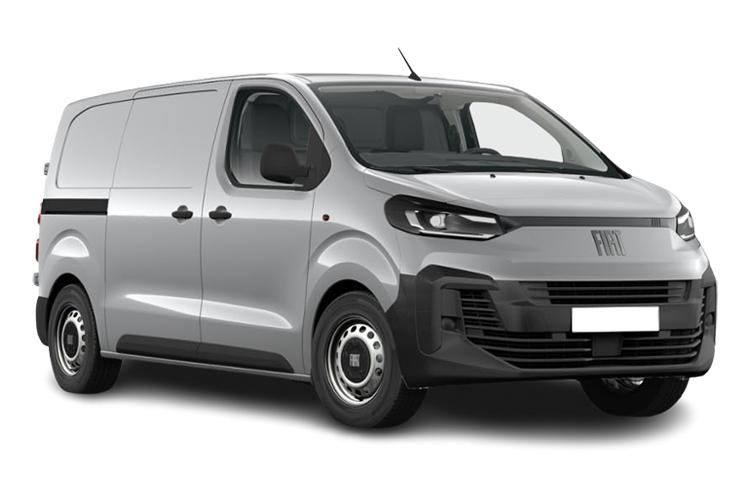

FIAT SCUDO L2 DIESEL

Emissions - ICE

• CO
  Not Available
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb - TEH
  215
• WLTP - CO2 (g/km) - Comb - TEL
  186

Engine and Drive Train

• Automatic Transmission
  Yes
• Bore
  85
• Catalytic Convertor
  Yes
• CC
  1997
• Cooling System
  WATER
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Engine Layout
  FRONT TRANSVERSE
• Engine Make
  Not Available
• Fuel Delivery
  COMMON RAIL
• Fuel Type
  DIESEL
• Gears
  8 SPEED
• Manual Transmission
  No
• Number of Valves
  16
• Stroke
  88
• Valve gear
  DOHC

Fuel Consumption - ICE

• WLTP - FC (l/100km) - Comb - TEH
  8.2
• WLTP - FC (l/100km) - Comb - TEL
  7.1
• WLTP - MPG - Comb - TEH
  34.4
• WLTP - MPG - Comb - TEL
  39.8

General

• Alternative Fuel Qualifying
  No
• Did at least one aspect of this vehicles safety give cause for concern?
  No
• Badge Engine CC
  2.0
• Badge Power
  145
• Based On ID
  Not Available
• Chassis Engine Number
  Not Available
• Clutch
  SINGLE DRY PLATE
• Coin Description
  Not Available
• Coin Gross Vehicle Weight Code
  Not Available
• Coin Power Output Code
  Not Available
• Coin Series
  Not Available
• Coin Wheelbase Description Code
  Not Available
• Coin Wheelbase Name Code
  Not Available
• Exhaust System
  CATALYTIC CONVERTER
• Front Brakes
  VENTILATED DISCS
• Front Suspension
  MACPHERSON STRUTS
• Ghost model for valuation purposes
  No
• Hand Brake
  REAR
• Insurance Group 1
  Not Available
• Insurance Group 2
  Not Available
• Manufacturers Corrosion Perforation Guarantee - Years
  8
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  Not Available
• NCAP Child Occupant Protection %
  Not Available
• NCAP Overall Rating - Effective February 09
  Not Available
• NCAP Overall Rating - LCV
  Gold
• NCAP Pedestrian Protection %
  Not Available
• NCAP Safety Assist %
  67
• Rear Brakes
  DISCS
• Rear Suspension
  TORSION BEAM
• Relative Height
  H1
• Relative Length
  L2
• Running Cost League Headings
  MEDIUM
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  32000
• Special Edition
  No
• Special Order
  No
• Steering
  PAS
• This vehicle is classed as a car for VED purposes
  No
• Timing Belt Interval Frequency - Months
  120
• Timing Belt Interval Mileage
  90000
• Vehicle Homologation Class
  N1
• Vin/Frame No.
  Not Available

Performance

• BHP
  145
• Engine Power KW
  107
• Engine Power RPM
  3750
• Engine Torque LBS.FT
  273
• Engine Torque MKG
  37.7
• Engine Torque NM
  370
• Engine Torque RPM
  2000
• Top Speed
  106

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  No
• Automatic Clutch
  Yes
• Plated 3rd Axle
  Not Available
• Plated 4th Axle
  Not Available
• Space Saver?
  No
• Tyre Make
  Michelin
• Tyre Size Front
  215/65 R16
• Tyre Size Rear
  215/65 R16
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  16" STEEL

Vehicle Dimensions

• Front Overhang
  904
• Height
  1935
• Length
  5331
• Load Deck Height
  633
• Load Height
  1397
• Load Length
  2862
• Load Space Width Between Wheel Arches
  1258
• Load Width
  1636
• Lower Rear Door Width
  1282
• Rear Door Height
  1220
• Rear Overhang
  1152
• Side Load Door Height
  1241
• Side Load Door Width
  935
• Turning Circle - Kerb to Kerb
  12
• Wheelbase
  3275
• Width (excluding mirrors)
  1924
• Width (including mirrors)
  2204

Weight and Capacities

• Boot Capacity Saloons
  Not Available
• Fuel Tank Capacity (Litres)
  70
• Gross Train Weight
  4900
• Gross Vehicle Weight
  3100
• Load Space Volume
  6.6
• Luggage Capacity (Seats Down)
  Not Available
• Luggage Capacity (Seats Up)
  Not Available
• Luggage Capacity - 2nd Row Seats Removed
  Not Available
• Luggage Capacity - 2nd Row Seats Up
  Not Available
• Luggage Capacity - 3rd Row Seats Down
  Not Available
• Luggage Capacity - 3rd Row Seats Removed
  Not Available
• Luggage Capacity - 3rd Row Seats Up
  Not Available
• Max. Towing Weight - Braked
  2500
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1771
• No. of Seats
  3
• Payload
  1329
• Plated 2nd Axle
  1800
• Plated Front Axle
  1500
