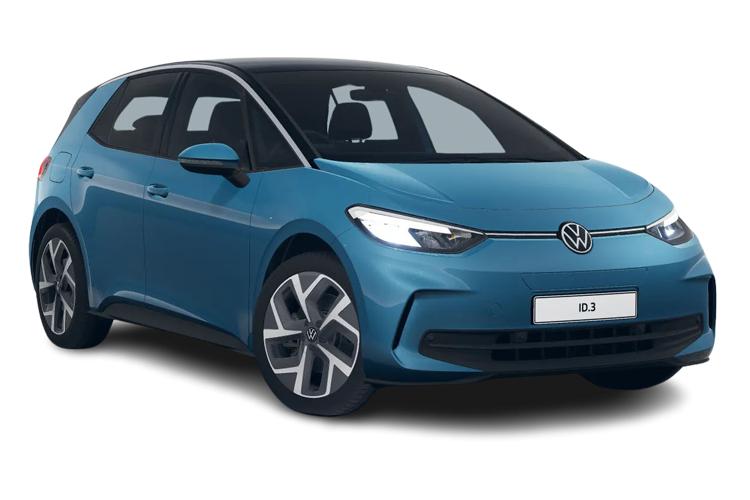

VOLKSWAGEN ID.3 HATCHBACK

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  63
• Battery Charging Scenario 1 - Charge Time (Mins)
  390
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  11
• Battery Charging Scenario 2 - Charge Time (Mins)
  24
• Battery Charging Scenario 2 - Percentage Change
  10-80
• Battery Charging Scenario 2 - Power Supply - kW
  165
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  165
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  59
• WLTP - EC (kWh/100km) - Comb
  15.4
• WLTP - EC (miles/kWh) - Comb
  4.3
• WLTP - Pure Electric Range (km) - City
  554
• WLTP - Pure Electric Range (km) - Comb
  431
• WLTP - Pure Electric Range (km) - Comb - TEH
  431
• WLTP - Pure Electric Range (km) - Comb - TEL
  431
• WLTP - Pure Electric Range (miles) - City
  344
• WLTP - Pure Electric Range (miles) - Comb
  268
• WLTP - Pure Electric Range (miles) - Comb - TEH
  268
• WLTP - Pure Electric Range (miles) - Comb - TEL
  268

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  E123KK
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  Not Available
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
• Badge Power
  204
• Based On ID
  Not Available
• Coin Description
  Pro
• Coin Series
  Match [Pan Roof]
• Insurance Group 1 - 50 Effective January 07
  26E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  86
• NCAP Child Occupant Protection %
  87
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  78
• NCAP Safety Assist %
  76
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  999999
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.6
• Engine Power - BHP
  204
• Engine Power - KW
  150
• Engine Torque - LBS.FT
  195
• Engine Torque - MKG
  27
• Engine Torque - NM
  265
• Top Speed
  99

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  215/55 R18
• Tyre Size Rear
  215/55 R18
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  EAST DERRY
• Wheel Type
  18" ALLOY

Vehicle Dimensions

• Height
  1564
• Length
  4264
• Wheelbase
  2770
• Width
  1809

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2280
• Luggage Capacity (Seats Down)
  1267
• Luggage Capacity (Seats Up)
  385
• Max. Loading Weight
  533
• Minimum Kerbweight
  1747
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.5
