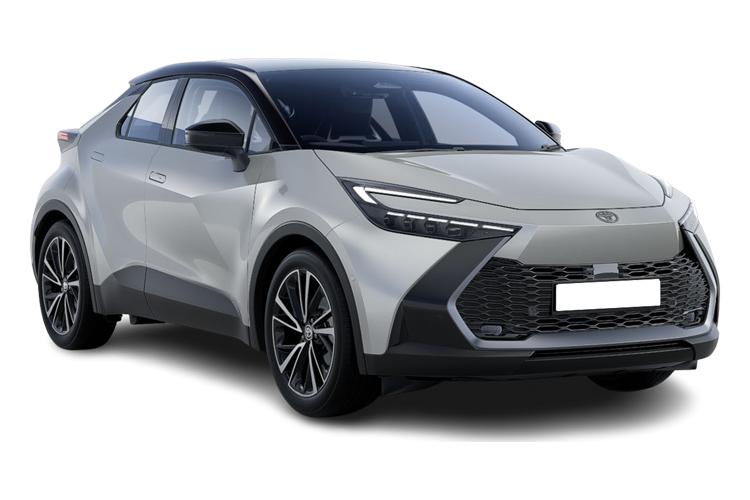

TOYOTA C-HR HATCHBACK

Electric Vehicle Data

• Battery Capacity in kWh
  0.85
• Battery Type
  Lithium-ion

Emissions - ICE

• CO
  0.098
• HC
  0.018
• HC+NOx
  Not Available
• Noise Level dB(A)
  67
• NOx
  0.003
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  105
• WLTP - CO2 (g/km) - Comb - TEH
  110
• WLTP - CO2 (g/km) - Comb - TEL
  101
• WLTP - CO2 (g/km) - Extra High
  137
• WLTP - CO2 (g/km) - High
  92
• WLTP - CO2 (g/km) - Low
  85
• WLTP - CO2 (g/km) - Medium
  81

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1798
• Compression Ratio
  13.05:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  80.5
• Cylinders - Stroke (mm)
  88.3
• Engine Code
  2ZR-FXE
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  MULTI POINT FUEL INJECTION
• Gears
  1 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  4.7
• WLTP - FC (l/100km) - Extra High
  6.1
• WLTP - FC (l/100km) - High
  4.1
• WLTP - FC (l/100km) - Low
  3.8
• WLTP - FC (l/100km) - Medium
  3.6
• WLTP - MPG - Comb
  60.1
• WLTP - MPG - Extra High
  46.3
• WLTP - MPG - High
  68.9
• WLTP - MPG - Low
  74.3
• WLTP - MPG - Medium
  78.5

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.8
• Badge Power
  140
• Based On ID
  Not Available
• Coin Description
  Hybrid
• Coin Series
  Icon
• Generation Mark
  2
• Insurance Group 1 - 50 Effective January 07
  20E
• NCAP Adult Occupant Protection %
  85
• NCAP Child Occupant Protection %
  86
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  86
• NCAP Safety Assist %
  79
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  10000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  9.6
• Engine Power - BHP
  140
• Engine Power - KW
  103
• Engine Power - RPM
  5200
• Engine Torque - LBS.FT
  136
• Engine Torque - MKG
  18.9
• Engine Torque - NM
  185
• Engine Torque - RPM
  3600
• Top Speed
  109

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  215/60 R17
• Tyre Size Rear
  215/60 R17
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  5-DOUBLE SPOKE
• Wheel Type
  17" ALLOY

Vehicle Dimensions

• Height
  1558
• Height (including roof rails)
  Not Available
• Length
  4362
• Wheelbase
  2640
• Width
  1832

Weight and Capacities

• Fuel Tank Capacity (Litres)
  43
• Gross Vehicle Weight
  1930
• Luggage Capacity (Seats Up)
  447
• Max. Loading Weight
  500
• Max. Roof Load
  50
• Max. Towing Weight - Braked
  725
• Max. Towing Weight - Unbraked
  725
• Minimum Kerbweight
  1430
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11
