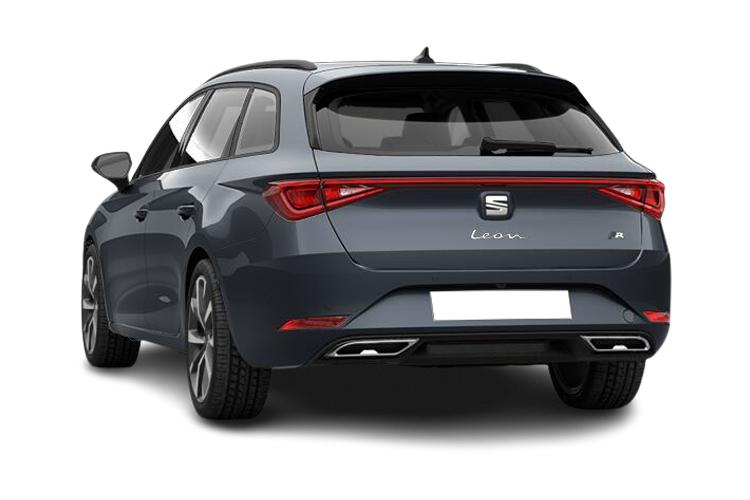

SEAT LEON DIESEL ESTATE

Emissions - ICE

• HC
  Not Available
• NOx
  0.031
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  120
• WLTP - CO2 (g/km) - Comb - TEH
  131
• WLTP - CO2 (g/km) - Comb - TEL
  120
• WLTP - CO2 (g/km) - Extra High
  122
• WLTP - CO2 (g/km) - High
  101
• WLTP - CO2 (g/km) - Low
  169
• WLTP - CO2 (g/km) - Medium
  115

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1968
• Compression Ratio
  16.0:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  81
• Cylinders - Stroke (mm)
  95.5
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  COMMON RAIL
• Gears
  6 SPEED
• Number of Valves
  16
• Transmission
  MANUAL

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  4.6
• WLTP - FC (l/100km) - Comb - TEH
  5
• WLTP - FC (l/100km) - Comb - TEL
  4.6
• WLTP - FC (l/100km) - Extra High
  4.6
• WLTP - FC (l/100km) - High
  3.8
• WLTP - FC (l/100km) - Low
  6.5
• WLTP - FC (l/100km) - Medium
  4.4
• WLTP - MPG - Comb
  61.4
• WLTP - MPG - Comb - TEH
  56.5
• WLTP - MPG - Comb - TEL
  61.4
• WLTP - MPG - Extra High
  61.4
• WLTP - MPG - High
  74.3
• WLTP - MPG - Low
  43.5
• WLTP - MPG - Medium
  64.2

General

• Alternative Fuel Qualifying
  No
• Badge Engine CC
  2.0
• Badge Power
  115
• Based On ID
  Not Available
• Coin Description
  TDI EVO
• Coin Series
  SE [DAP]
• Generation Mark
  4
• Insurance Group 1 - 50 Effective January 07
  15E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  88
• NCAP Child Occupant Protection %
  86
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  81
• NCAP Safety Assist %
  77
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  10.8
• Engine Power - BHP
  115
• Engine Power - KW
  85
• Engine Power - RPM
  2750
• Engine Torque - LBS.FT
  221
• Engine Torque - MKG
  30.6
• Engine Torque - NM
  300
• Engine Torque - RPM
  1600
• Top Speed
  124

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  205/55 R16
• Tyre Size Rear
  205/55 R16
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  URBAN
• Wheel Type
  16" ALLOY

Vehicle Dimensions

• Height
  1450
• Height (including roof rails)
  Not Available
• Length
  4642
• Wheelbase
  2686
• Width
  1799
• Width (including mirrors)
  Not Available

Weight and Capacities

• Fuel Tank Capacity (Litres)
  45
• Gross Vehicle Weight
  2000
• Luggage Capacity (Seats Up)
  620
• Max. Loading Weight
  606
• Max. Towing Weight - Braked
  1500
• Max. Towing Weight - Unbraked
  730
• Minimum Kerbweight
  1394
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.8
