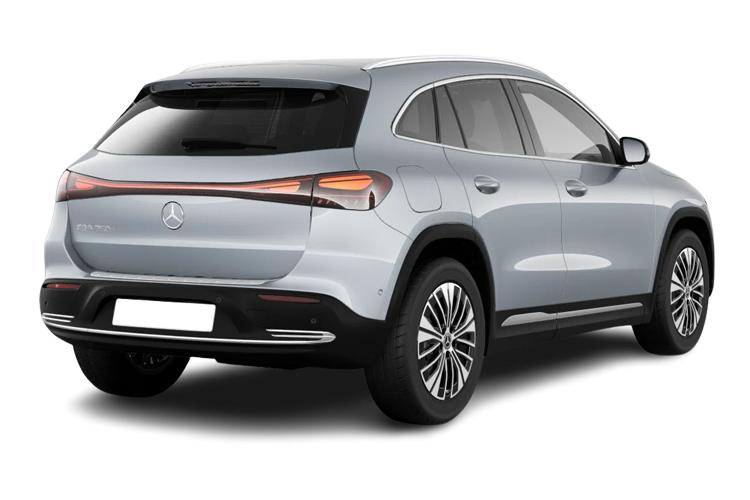

MERCEDES-BENZ EQA HATCHBACK

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  70.5
• Battery Charging Scenario 1 - Charge Time (Mins)
  645
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  7.4
• Battery Charging Scenario 2 - Charge Time (Mins)
  435
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  11
• Battery Charging Scenario 3 - Charge Time (Mins)
  35
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  100
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  100
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  70
• WLTP - EC (kWh/100km) - Comb
  18.4
• WLTP - EC (kWh/100km) - Comb - TEH
  18.5
• WLTP - EC (kWh/100km) - Comb - TEL
  18.4
• WLTP - EC (miles/kWh) - Comb
  3.4
• WLTP - EC (miles/kWh) - Comb - TEH
  3.4
• WLTP - EC (miles/kWh) - Comb - TEL
  3.4
• WLTP - Pure Electric Range (km) - Comb
  440
• WLTP - Pure Electric Range (km) - Comb - TEH
  438
• WLTP - Pure Electric Range (km) - Comb - TEL
  440
• WLTP - Pure Electric Range (miles) - Comb
  273
• WLTP - Pure Electric Range (miles) - Comb - TEH
  272
• WLTP - Pure Electric Range (miles) - Comb - TEL
  273

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  68
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  Not Available
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• AdBlue
  No
• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
• Badge Power
  228
• Based On ID
  Not Available
• Coin Description
  Not Available
• Coin Series
  AMG Line Prem Plus
• Generation Mark
  2
• Insurance Group 1 - 50 Effective January 07
  42E
• Manufacturers Corrosion Perforation Guarantee - Years
  6
• Manufacturers Paintwork Guarantee - Years
  2
• NCAP Adult Occupant Protection %
  97
• NCAP Child Occupant Protection %
  90
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  81
• NCAP Safety Assist %
  75
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  15500
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  3
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.7
• Engine Power - BHP
  228
• Engine Power - KW
  168
• Engine Power - RPM
  7804
• Engine Torque - LBS.FT
  288
• Engine Torque - MKG
  39.8
• Engine Torque - NM
  390
• Top Speed
  99

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/45 R20
• Tyre Size Rear
  235/45 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  AMG 10 SPOKE
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1613
• Height (including roof rails)
  Not Available
• Length
  4463
• Wheelbase
  2729
• Width
  1834
• Width (including mirrors)
  2020

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2540
• Luggage Capacity (Seats Down)
  1320
• Luggage Capacity (Seats Up)
  340
• Max. Loading Weight
  425
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  1800
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2115
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.4
