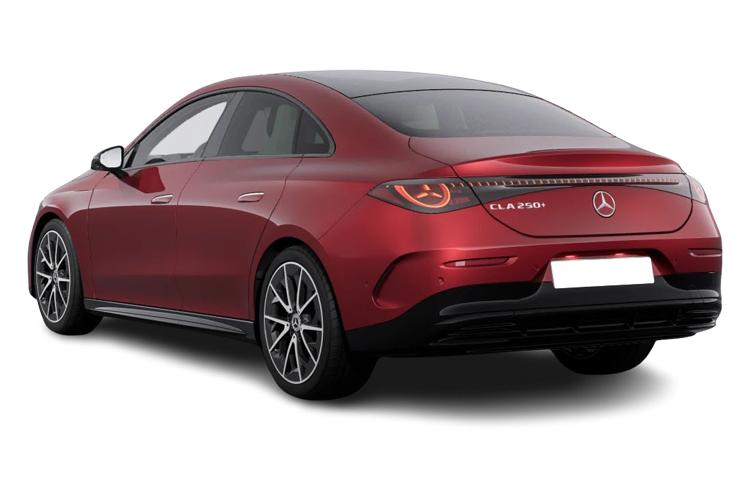

MERCEDES-BENZ CLA COUPE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  12.9
• Battery Charging Scenario 1 - Charge Time (Mins)
  120
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  11
• Battery Charging Scenario 2 - Charge Time (Mins)
  28
• Battery Charging Scenario 2 - Percentage Change
  10-80
• Battery Charging Scenario 2 - Power Supply - kW
  22
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  22
• Standard manufacturers Battery warranty - Mileage
  62000
• Standard manufacturers Battery warranty - Years
  6
• Usable Battery Capacity
  10.6
• WLTP - EC AC Weighted (kWh/100km) - Comb
  20.9
• WLTP - EC AC Weighted (miles/kWh) - Comb
  3
• WLTP - Equivalent AER (km) - Comb
  78
• WLTP - Equivalent AER (miles) - Comb
  48

Emissions - ICE

• CO
  0.212
• HC
  0.012
• HC+NOx
  Not Available
• Noise Level dB(A)
  65
• NOx
  0.003
• Particles
  0.0001
• Standard Emissions
  EURO 6e-bis

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  62
• WLTP - CO2 Weighted (g/km) - Comb - TEH
  62
• WLTP - CO2 Weighted (g/km) - Comb - TEL
  62

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1332
• Compression Ratio
  12.0:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  72.2
• Cylinders - Stroke (mm)
  81.2
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  8 SPEED
• Number of Valves
  16
• Transmission
  SEMI-AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No

Fuel Consumption - PHEV

• WLTP - FC Ch Sus (l/100km) - Comb
  6.5
• WLTP - FC Ch Sus (l/100km) - Comb - TEH
  6.5
• WLTP - FC Ch Sus (l/100km) - Comb - TEL
  6.5
• WLTP - FC Ch Sus (l/100km) - Extra High
  6.5
• WLTP - FC Ch Sus (l/100km) - Extra High - TEH
  6.5
• WLTP - FC Ch Sus (l/100km) - Extra High - TEL
  6.5
• WLTP - FC Ch Sus (l/100km) - High
  5.5
• WLTP - FC Ch Sus (l/100km) - High - TEH
  5.5
• WLTP - FC Ch Sus (l/100km) - High - TEL
  5.5
• WLTP - FC Ch Sus (l/100km) - Low
  9.6
• WLTP - FC Ch Sus (l/100km) - Low - TEH
  9.6
• WLTP - FC Ch Sus (l/100km) - Low - TEL
  9.6
• WLTP - FC Ch Sus (l/100km) - Medium
  5.8
• WLTP - FC Ch Sus (l/100km) - Medium - TEH
  5.8
• WLTP - FC Ch Sus (l/100km) - Medium - TEL
  5.8
• WLTP - FC Ch Sus (mpg) - Comb
  43.5
• WLTP - FC Ch Sus (mpg) - Comb - TEH
  43.5
• WLTP - FC Ch Sus (mpg) - Comb - TEL
  43.5
• WLTP - FC Ch Sus (mpg) - Extra High
  43.5
• WLTP - FC Ch Sus (mpg) - Extra High - TEH
  43.5
• WLTP - FC Ch Sus (mpg) - Extra High - TEL
  43.5
• WLTP - FC Ch Sus (mpg) - High
  51.4
• WLTP - FC Ch Sus (mpg) - High - TEH
  51.4
• WLTP - FC Ch Sus (mpg) - High - TEL
  51.4
• WLTP - FC Ch Sus (mpg) - Low
  29.4
• WLTP - FC Ch Sus (mpg) - Low - TEH
  29.4
• WLTP - FC Ch Sus (mpg) - Low - TEL
  29.4
• WLTP - FC Ch Sus (mpg) - Medium
  48.7
• WLTP - FC Ch Sus (mpg) - Medium - TEH
  48.7
• WLTP - FC Ch Sus (mpg) - Medium - TEL
  48.7
• WLTP - FC Weighted (l/100km) - Comb
  2.7
• WLTP - FC Weighted (mpg) - Comb
  104.6

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.3
• Badge Power
  218
• Based On ID
  Not Available
• Coin Description
  Not Available
• Coin Series
  AMG Line Prem Plus
• Generation Mark
  2
• Insurance Group 1 - 50 Effective January 07
  35E
• Manufacturers Corrosion Perforation Guarantee - Years
  30
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  96
• NCAP Child Occupant Protection %
  91
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  91
• NCAP Safety Assist %
  75
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  15500
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.6
• Engine Power - BHP
  218
• Engine Power - KW
  160
• Engine Power - RPM
  5500
• Engine Torque - LBS.FT
  332
• Engine Torque - MKG
  45.9
• Engine Torque - NM
  450
• Engine Torque - RPM
  2000
• Top Speed
  142

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  225/40 R19
• Tyre Size Rear
  225/40 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  AMG MULTI SPOKE
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height
  1450
• Height (including roof rails)
  Not Available
• Length
  4688
• Wheelbase
  2729
• Width
  1830
• Width (including mirrors)
  1999

Weight and Capacities

• Fuel Tank Capacity (Litres)
  35
• Gross Vehicle Weight
  2225
• Luggage Capacity (Seats Up)
  395
• Max. Loading Weight
  475
• Max. Roof Load
  100
• Max. Towing Weight - Braked
  1600
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1750
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.1
