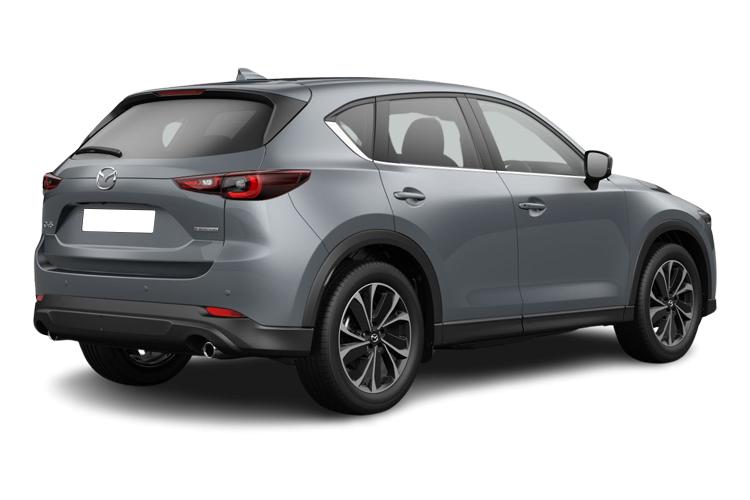

MAZDA CX-5 ESTATE

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  155
• WLTP - CO2 (g/km) - Comb - TEH
  156
• WLTP - CO2 (g/km) - Comb - TEL
  155
• WLTP - CO2 (g/km) - Extra High
  165
• WLTP - CO2 (g/km) - High
  133
• WLTP - CO2 (g/km) - Low
  196
• WLTP - CO2 (g/km) - Medium
  146

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1998
• Compression Ratio
  13.0:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  83.5
• Cylinders - Stroke (mm)
  91.2
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  DIRECT INJECTION
• Gears
  6 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  6.9
• WLTP - FC (l/100km) - Extra High
  7.3
• WLTP - FC (l/100km) - High
  5.9
• WLTP - FC (l/100km) - Low
  8.7
• WLTP - FC (l/100km) - Low - TEH
  8.7
• WLTP - FC (l/100km) - Low - TEL
  8.6
• WLTP - FC (l/100km) - Medium
  6.5
• WLTP - FC (l/100km) - Medium - TEH
  6.6
• WLTP - FC (l/100km) - Medium - TEL
  6.5
• WLTP - MPG - Comb
  40.9
• WLTP - MPG - Extra High
  38.7
• WLTP - MPG - High
  47.9
• WLTP - MPG - Low
  32.5
• WLTP - MPG - Low - TEH
  32.5
• WLTP - MPG - Low - TEL
  32.8
• WLTP - MPG - Medium
  43.5
• WLTP - MPG - Medium - TEH
  42.8
• WLTP - MPG - Medium - TEL
  43.5

General

• Alternative Fuel Qualifying
  No
• Badge Engine CC
  2.0
• Badge Power
  165
• Based On ID
  Not Available
• Coin Description
  MHEV
• Coin Series
  Centre-Line
• Generation Mark
  2
• Insurance Group 1 - 50 Effective January 07
  17E
• NCAP Adult Occupant Protection %
  90
• NCAP Child Occupant Protection %
  89
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  93
• NCAP Safety Assist %
  83
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  12500
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  6
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  10.2
• Engine Power - BHP
  165
• Engine Power - KW
  121
• Engine Power - RPM
  6000
• Engine Torque - LBS.FT
  157
• Engine Torque - MKG
  21.7
• Engine Torque - NM
  213
• Engine Torque - RPM
  4000
• Top Speed
  119

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  225/65 R17
• Tyre Size Rear
  225/65 R17
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  17" ALLOY

Vehicle Dimensions

• Height
  1675
• Height (including roof rails)
  Not Available
• Length
  4575
• Wheelbase
  2700
• Width
  1845
• Width (including mirrors)
  2115

Weight and Capacities

• Fuel Tank Capacity (Litres)
  56
• Gross Vehicle Weight
  2035
• Luggage Capacity (Seats Down)
  1638
• Luggage Capacity (Seats Up)
  522
• Max. Loading Weight
  525
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  2000
• Minimum Kerbweight
  1510
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11
