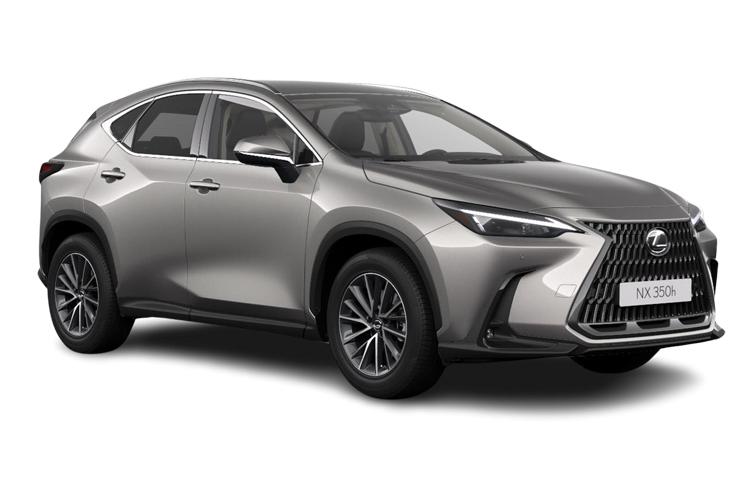

LEXUS NX ESTATE

Electric Vehicle Data

• Battery Capacity in kWh
  1.1
• Battery Type
  Lithium-ion

Emissions - ICE

• CO
  0.12
• HC
  0.01
• HC+NOx
  Not Available
• Noise Level dB(A)
  67
• NOx
  0.002
• Particles
  0.0001
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  131
• WLTP - CO2 (g/km) - Comb - TEH
  131
• WLTP - CO2 (g/km) - Comb - TEL
  113

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  2487
• Compression Ratio
  14.0:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  87.5
• Cylinders - Stroke (mm)
  103.4
• Engine Code
  A25A-FXS
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  MULTI POINT FUEL INJECTION
• Gears
  1 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  5.6
• WLTP - FC (l/100km) - Comb - TEH
  5.6
• WLTP - FC (l/100km) - Comb - TEL
  5
• WLTP - MPG - Comb
  50.4
• WLTP - MPG - Comb - TEH
  50.4
• WLTP - MPG - Comb - TEL
  56.5

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  2.5
• Badge Power
  197
• Based On ID
  Not Available
• Coin Description
  h
• Coin Series
  Premium Plus [197]
• Generation Mark
  2
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  91
• NCAP Child Occupant Protection %
  87
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  83
• NCAP Safety Assist %
  91
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  10000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  8.8
• Engine Power - BHP
  197
• Engine Power - KW
  145
• Engine Power - RPM
  4500
• Engine Torque - LBS.FT
  170
• Engine Torque - MKG
  23.5
• Engine Torque - NM
  230
• Engine Torque - RPM
  4300
• Top Speed
  190

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/50 R20
• Tyre Size Rear
  235/50 R20
• Tyre Size Spare
  RUN FLAT TYRES
• Wheel Style
  5 TWIN SPOKE
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1670
• Length
  4660
• Wheelbase
  2690
• Width
  1865
• Width (including mirrors)
  Not Available

Weight and Capacities

• Fuel Tank Capacity (Litres)
  55
• Gross Vehicle Weight
  2320
• Luggage Capacity (Seats Down)
  1411
• Luggage Capacity (Seats Up)
  520
• Max. Loading Weight
  590
• Max. Towing Weight - Braked
  1000
• Max. Towing Weight - Unbraked
  500
• Minimum Kerbweight
  1730
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.6
