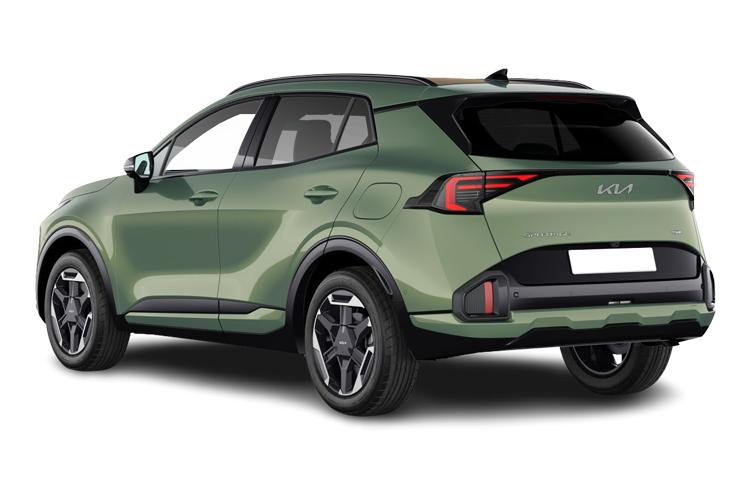

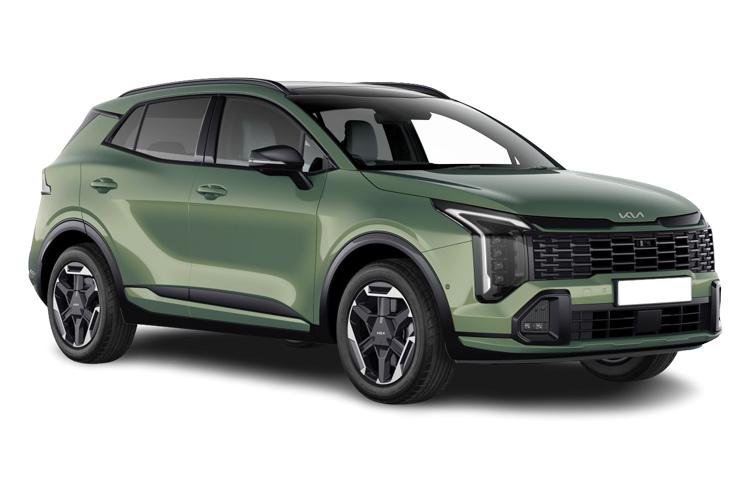

KIA SPORTAGE ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  13.8
• Battery Charging Scenario 1 - Charge Time (Mins)
  327
• Battery Charging Scenario 1 - Percentage Change
  15-95
• Battery Charging Scenario 1 - Power Supply - kW
  2.3
• Battery Charging Scenario 2 - Charge Time (Mins)
  104
• Battery Charging Scenario 2 - Percentage Change
  15-95
• Battery Charging Scenario 2 - Power Supply - kW
  7.2
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  7.2
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• WLTP - EC AC Weighted (kWh/100km) - Comb
  11.1
• WLTP - EC AC Weighted (miles/kWh) - Comb
  5.6
• WLTP - Equivalent AER (km) - Comb
  64
• WLTP - Equivalent AER (miles) - Comb
  40

Emissions - ICE

• CO
  0.163
• HC
  0.017
• HC+NOx
  Not Available
• Noise Level dB(A)
  65
• NOx
  0.009
• Particles
  0
• Standard Emissions
  EURO 6

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  26

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1598
• Cylinder Layout
  IN-LINE
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  6 SPEED
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No

Fuel Consumption - PHEV

• WLTP - FC Weighted (l/100km) - Comb
  3.1
• WLTP - FC Weighted (mpg) - Comb
  91.1

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.6
• Badge Power
  283
• Based On ID
  Not Available
• Coin Description
  T GDi PHEV AWD
• Coin Series
  GT-Line
• Generation Mark
  5
• Insurance Group 1 - 50 Effective January 07
  28E
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  10000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  7
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.8
• Engine Power - BHP
  283
• Engine Power - KW
  211
• Engine Power - RPM
  6000
• Engine Torque - LBS.FT
  280
• Engine Torque - MKG
  38.7
• Engine Torque - NM
  380
• Engine Torque - RPM
  4500
• Top Speed
  128

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/50 R19
• Tyre Size Rear
  235/50 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height
  1645
• Length
  4540
• Wheelbase
  2680
• Width
  1865

Weight and Capacities

• Fuel Tank Capacity (Litres)
  42
• Gross Vehicle Weight
  2430
• Luggage Capacity (Seats Down)
  1715
• Luggage Capacity (Seats Up)
  540
• Max. Loading Weight
  534
• Max. Towing Weight - Braked
  1210
• Minimum Kerbweight
  1896
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11
