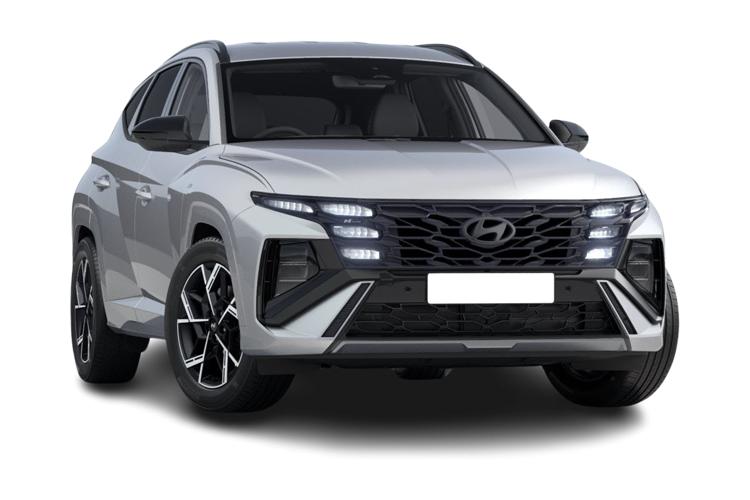

HYUNDAI TUCSON ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  13.8
• Battery Charging Scenario 1 - Charge Time (Mins)
  102
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  7.4
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  7.4
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  Not Available
• WLTP - Equivalent AER (km) - Comb
  68
• WLTP - Equivalent AER (miles) - Comb
  42.3

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6

Emissions - PHEV

• WLTP - CO2 Weighted (g/km) - Comb
  24

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1598
• Compression Ratio
  10.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  75.6
• Cylinders - Stroke (mm)
  89
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  6 SPEED
• Number of Valves
  16
• Transmission
  SEMI-AUTO

Fuel Consumption - PHEV

• WLTP - FC Ch Sus (l/100km) - Comb
  6.4
• WLTP - FC Ch Sus (l/100km) - Extra High
  7.4
• WLTP - FC Ch Sus (l/100km) - High
  5.4
• WLTP - FC Ch Sus (l/100km) - Low
  7.3
• WLTP - FC Ch Sus (l/100km) - Medium
  5.6
• WLTP - FC Ch Sus (mpg) - Comb
  44.1
• WLTP - FC Ch Sus (mpg) - Extra High
  38.2
• WLTP - FC Ch Sus (mpg) - High
  52.3
• WLTP - FC Ch Sus (mpg) - Low
  38.7
• WLTP - FC Ch Sus (mpg) - Medium
  50.4
• WLTP - FC Weighted (l/100km) - Comb
  1.1
• WLTP - FC Weighted (mpg) - Comb
  256.8

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.6
• Badge Power
  252
• Based On ID
  Not Available
• Coin Description
  T Plug-in Hybrid
• Coin Series
  N Line Edition
• Generation Mark
  4
• Insurance Group 1 - 50 Effective January 07
  24E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• NCAP Adult Occupant Protection %
  86
• NCAP Child Occupant Protection %
  87
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  66
• NCAP Safety Assist %
  70
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  5
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.9
• Engine Power - BHP
  252
• Engine Power - KW
  185
• Engine Power - RPM
  5500
• Engine Torque - LBS.FT
  271
• Engine Torque - MKG
  37.4
• Engine Torque - NM
  367
• Engine Torque - RPM
  1500
• Top Speed
  116

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/50 R19
• Tyre Size Rear
  235/50 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height (including roof rails)
  1650
• Length
  4510
• Wheelbase
  2680
• Width
  1865

Weight and Capacities

• Fuel Tank Capacity (Litres)
  42
• Gross Vehicle Weight
  2350
• Luggage Capacity (Seats Down)
  1721
• Luggage Capacity (Seats Up)
  556
• Max. Loading Weight
  474
• Max. Roof Load
  100
• Max. Towing Weight - Braked
  1210
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1876
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11
