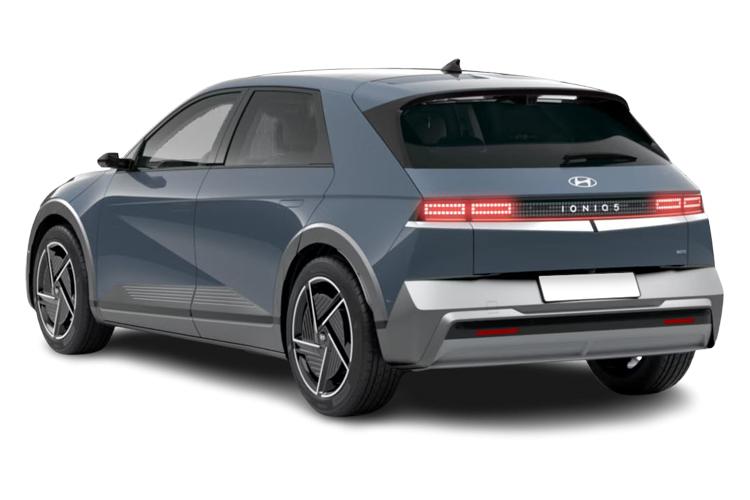

HYUNDAI IONIQ 5 ELECTRIC HATCHBACK

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  84
• Battery Charging Scenario 1 - Charge Time (Mins)
  455
• Battery Charging Scenario 1 - Percentage Change
  10-100
• Battery Charging Scenario 1 - Power Supply - kW
  10.5
• Battery Charging Scenario 2 - Charge Time (Mins)
  76
• Battery Charging Scenario 2 - Percentage Change
  10-80
• Battery Charging Scenario 2 - Power Supply - kW
  50
• Battery Charging Scenario 3 - Charge Time (Mins)
  18
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  350
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  350
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  Not Available
• WLTP - EC (kWh/100km) - Comb
  17
• WLTP - EC (miles/kWh) - Comb
  3.7
• WLTP - Pure Electric Range (km) - Comb
  530
• WLTP - Pure Electric Range (miles) - Comb
  329

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  Not Available
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
• Badge Power
  228
• Based On ID
  Not Available
• Coin Description
  Not Available
• Coin Series
  Ultimate [Tech/Zen]
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  38E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  20000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  5
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.5
• Engine Power - BHP
  228
• Engine Power - KW
  168
• Engine Torque - LBS.FT
  258
• Engine Torque - MKG
  35.7
• Engine Torque - NM
  350
• Top Speed
  114

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  255/45 R20
• Tyre Size Rear
  255/45 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Ultimate
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1605
• Length
  4655
• Wheelbase
  3000
• Width
  1890
• Width (including mirrors)
  2152

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2590
• Luggage Capacity (Seats Down)
  1580
• Luggage Capacity (Seats Up)
  520
• Max. Loading Weight
  605
• Max. Roof Load
  80
• Max. Towing Weight - Braked
  1600
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1985
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.98
