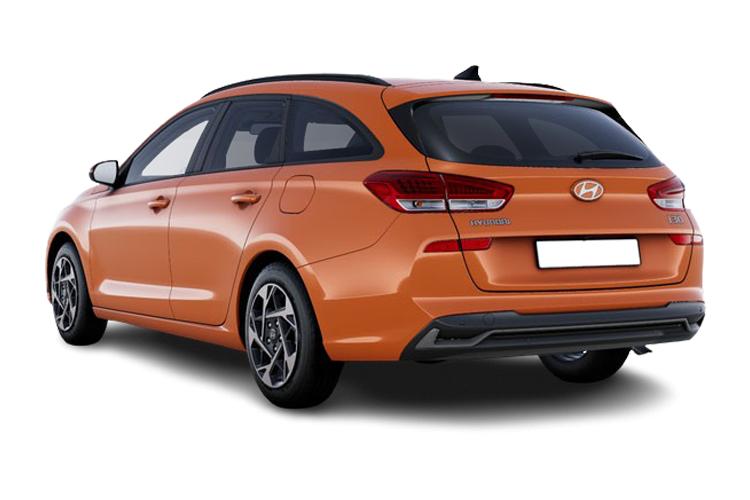

HYUNDAI I30 TOURER

Emissions - ICE

• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  135

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1482
• Compression Ratio
  10.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  72
• Cylinders - Stroke (mm)
  92
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO INJECTION
• Gears
  6 SPEED
• Number of Valves
  16
• Transmission
  MANUAL

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  6
• WLTP - FC (l/100km) - Extra High
  6.2
• WLTP - FC (l/100km) - High
  5.1
• WLTP - FC (l/100km) - Low
  7.6
• WLTP - FC (l/100km) - Medium
  5.8
• WLTP - MPG - Comb
  47.1
• WLTP - MPG - Extra High
  45.6
• WLTP - MPG - High
  55.4
• WLTP - MPG - Low
  37.2
• WLTP - MPG - Medium
  48.7

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.5
• Badge Power
  140
• Based On ID
  Not Available
• Coin Description
  T GDI 48v Hybrid
• Coin Series
  Premium
• Generation Mark
  3
• Insurance Group 1 - 50 Effective January 07
  14E
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  5
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  9.8
• Engine Power - BHP
  140
• Engine Power - KW
  103
• Engine Power - RPM
  5500
• Engine Torque - LBS.FT
  187
• Engine Torque - MKG
  25.8
• Engine Torque - NM
  253
• Engine Torque - RPM
  1500
• Top Speed
  130

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  225/45 R17
• Tyre Size Rear
  225/45 R17
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  17" ALLOY

Vehicle Dimensions

• Height
  1465
• Height (including roof rails)
  Not Available
• Length
  4585
• Wheelbase
  2650
• Width
  1795
• Width (including mirrors)
  2039

Weight and Capacities

• Fuel Tank Capacity (Litres)
  50
• Gross Vehicle Weight
  1870
• Luggage Capacity (Seats Down)
  1650
• Luggage Capacity (Seats Up)
  602
• Max. Loading Weight
  563
• Max. Roof Load
  80
• Max. Towing Weight - Braked
  1200
• Max. Towing Weight - Unbraked
  600
• Minimum Kerbweight
  1307
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.6
