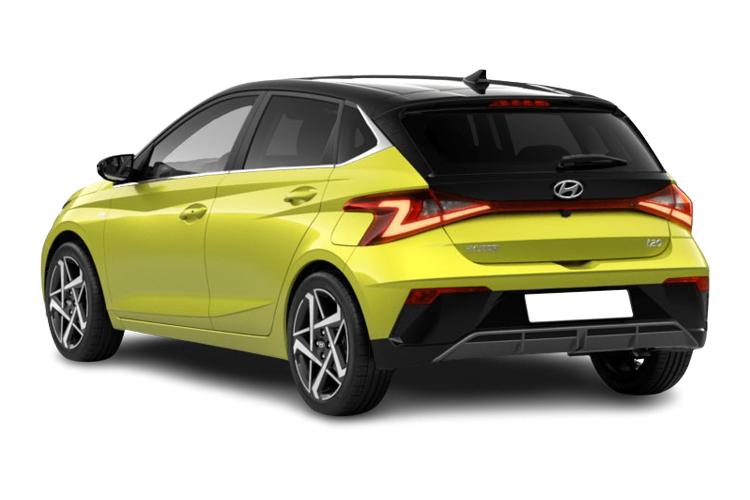

HYUNDAI I20 HATCHBACK

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  134

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  998
• Compression Ratio
  10.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  3
• Cylinders - Bore (mm)
  71
• Cylinders - Stroke (mm)
  84
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO INJECTION
• Gears
  6 SPEED
• Number of Valves
  12
• Transmission
  MANUAL

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  5.9
• WLTP - FC (l/100km) - Extra High
  6.3
• WLTP - FC (l/100km) - High
  5
• WLTP - FC (l/100km) - Low
  7.3
• WLTP - FC (l/100km) - Medium
  5.6
• WLTP - MPG - Comb
  47.9
• WLTP - MPG - Extra High
  44.8
• WLTP - MPG - High
  56.5
• WLTP - MPG - Low
  38.7
• WLTP - MPG - Medium
  50.4

General

• Alternative Fuel Qualifying
  No
• Badge Engine CC
  1.0
• Badge Power
  90
• Based On ID
  Not Available
• Coin Description
  T GDi 90
• Coin Series
  Tech Line [Tech]
• Generation Mark
  3
• Insurance Group 1 - 50 Effective January 07
  13E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  5
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  5
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  11.5
• Engine Power - BHP
  90
• Engine Power - KW
  66
• Engine Power - RPM
  4800
• Engine Torque - LBS.FT
  127
• Engine Torque - MKG
  17.5
• Engine Torque - NM
  172
• Engine Torque - RPM
  1500
• Top Speed
  112

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  215/45 R17
• Tyre Size Rear
  215/45 R17
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  17" ALLOY

Vehicle Dimensions

• Height
  1450
• Height (including roof rails)
  Not Available
• Length
  4065
• Wheelbase
  2580
• Width
  1775

Weight and Capacities

• Fuel Tank Capacity (Litres)
  40
• Gross Vehicle Weight
  1610
• Luggage Capacity (Seats Down)
  1165
• Luggage Capacity (Seats Up)
  352
• Max. Loading Weight
  540
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  910
• Max. Towing Weight - Unbraked
  450
• Minimum Kerbweight
  1070
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.4
