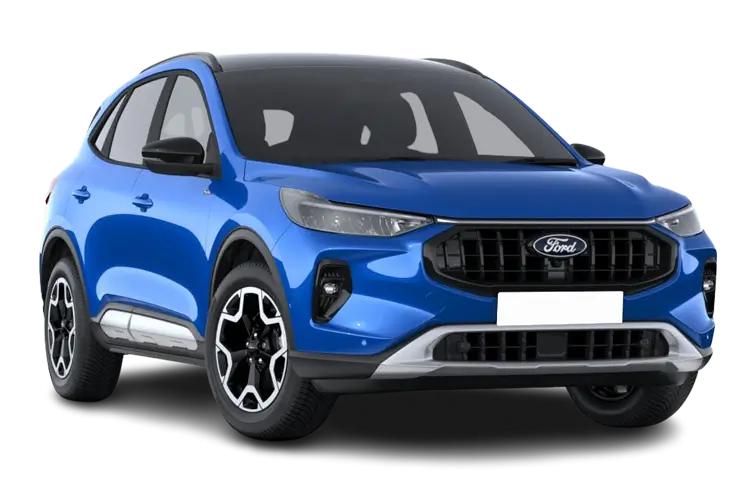

FORD KUGA ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  14.4
• Battery Charging Scenario 1 - Charge Time (Mins)
  360
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  3.7
• Battery Charging Scenario 2 - Charge Time (Mins)
  210
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  7
• Battery Charging Scenario 3 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 3 - Percentage Change
  Not Available
• Battery Charging Scenario 3 - Power Supply - kW
  Not Available
• Battery Charging Scenario 4 - Charge Time (Mins)
  Not Available
• Battery Charging Scenario 4 - Percentage Change
  Not Available
• Battery Charging Scenario 4 - Power Supply - kW
  Not Available
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Front
• Coupler/Connector Type
  Type 2
• Maximum Charging Rate - kW
  7
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  10.7
• WLTP - EC AC Weighted (kWh/100km) - Comb
  16.5
• WLTP - EC AC Weighted (miles/kWh) - Comb
  3.8
• WLTP - Equivalent AER (km) - Comb
  67
• WLTP - Equivalent AER (km) - Extra High
  47
• WLTP - Equivalent AER (miles) - Comb
  41.6
• WLTP - Equivalent AER (miles) - Extra High
  29.2

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6

Emissions - PHEV

• WLTP - CO2 Ch Sus (g/km) - Extra High - TEH
  148
• WLTP - CO2 Ch Sus (g/km) - Extra High - TEL
  143
• WLTP - CO2 Ch Sus (g/km) - High - TEH
  109
• WLTP - CO2 Ch Sus (g/km) - High - TEL
  104
• WLTP - CO2 Ch Sus (g/km) - Low - TEH
  195
• WLTP - CO2 Ch Sus (g/km) - Low - TEL
  193
• WLTP - CO2 Ch Sus (g/km) - Medium - TEH
  73
• WLTP - CO2 Ch Sus (g/km) - Medium - TEL
  64
• WLTP - CO2 Weighted (g/km) - Comb
  22
• WLTP - CO2 Weighted (g/km) - Comb - TEH
  23
• WLTP - CO2 Weighted (g/km) - Comb - TEL
  21

Engine and Drive Train

• Catalytic Convertor
  Yes
• CC
  2498
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  89
• Cylinders - Stroke (mm)
  100
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  1 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No

Fuel Consumption - PHEV

• WLTP - FC Weighted (l/100km) - Comb
  1
• WLTP - FC Weighted (l/100km) - Comb - TEH
  1
• WLTP - FC Weighted (l/100km) - Comb - TEL
  0.9
• WLTP - FC Weighted (mpg) - Comb
  282.5
• WLTP - FC Weighted (mpg) - Comb - TEH
  282.5
• WLTP - FC Weighted (mpg) - Comb - TEL
  313.9

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  2.5
• Badge Power
  243
• Based On ID
  Not Available
• Coin Description
  PHEV
• Coin Series
  ST-Line X Black Pack
• Generation Mark
  3
• Insurance Group 1 - 50 Effective January 07
  25E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  18000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  7.3
• Engine Power - BHP
  243
• Engine Power - KW
  178
• Engine Torque - LBS.FT
  236
• Engine Torque - MKG
  32.6
• Engine Torque - NM
  320
• Top Speed
  125

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  245/45 R20
• Tyre Size Rear
  245/45 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1623
• Length
  4615
• Wheelbase
  2711
• Width
  1882
• Width (including mirrors)
  2177

Weight and Capacities

• Fuel Tank Capacity (Litres)
  45
• Gross Vehicle Weight
  2400
• Luggage Capacity (Seats Down)
  1517
• Luggage Capacity (Seats Up)
  628
• Max. Loading Weight
  616
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  2100
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1784
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.4
