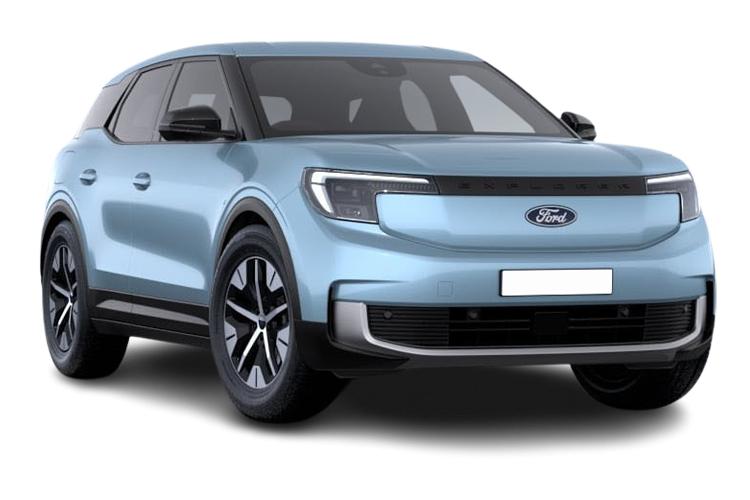

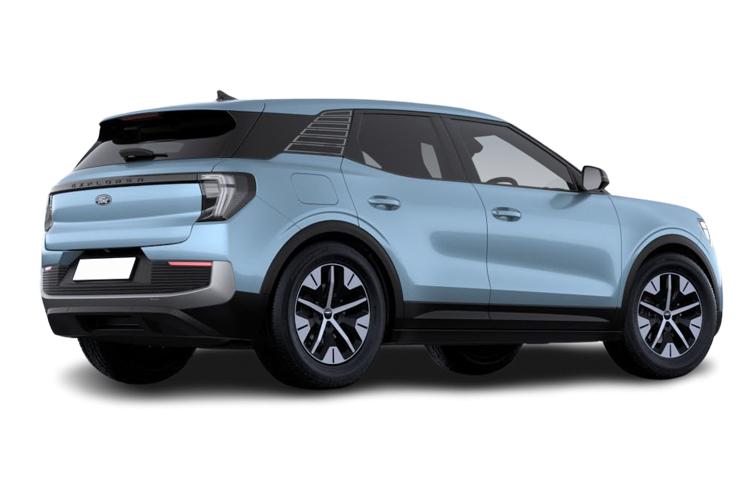

FORD EXPLORER ELECTRIC ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  70
• Battery Capacity in kWh
  84
• Battery Charging Scenario 1 - Charge Time (Mins)
  1534
• Battery Charging Scenario 1 - Percentage Change
  10-80
• Battery Charging Scenario 1 - Power Supply - kW
  2.3
• Battery Charging Scenario 2 - Charge Time (Mins)
  477
• Battery Charging Scenario 2 - Percentage Change
  10-80
• Battery Charging Scenario 2 - Power Supply - kW
  7.4
• Battery Charging Scenario 3 - Charge Time (Mins)
  321
• Battery Charging Scenario 3 - Percentage Change
  10-80
• Battery Charging Scenario 3 - Power Supply - kW
  11
• Battery Charging Scenario 4 - Charge Time (Mins)
  26
• Battery Charging Scenario 4 - Percentage Change
  10-80
• Battery Charging Scenario 4 - Power Supply - kW
  185
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Right Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  185
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  79
• WLTP - EC (kWh/100km) - Comb
  17.2
• WLTP - EC (kWh/100km) - Comb - TEH
  17.2
• WLTP - EC (kWh/100km) - Comb - TEL
  16.6
• WLTP - EC (miles/kWh) - Comb
  3.6
• WLTP - EC (miles/kWh) - Comb - TEH
  3.6
• WLTP - EC (miles/kWh) - Comb - TEL
  3.7
• WLTP - Pure Electric Range (km) - City
  668
• WLTP - Pure Electric Range (km) - City - TEH
  665
• WLTP - Pure Electric Range (km) - City - TEL
  668
• WLTP - Pure Electric Range (km) - Comb
  529
• WLTP - Pure Electric Range (km) - Comb - TEH
  519
• WLTP - Pure Electric Range (km) - Comb - TEL
  529
• WLTP - Pure Electric Range (km) - Extra High
  410
• WLTP - Pure Electric Range (km) - Extra High - TEH
  400
• WLTP - Pure Electric Range (km) - Extra High - TEL
  414
• WLTP - Pure Electric Range (km) - High
  597
• WLTP - Pure Electric Range (km) - High - TEH
  587
• WLTP - Pure Electric Range (km) - High - TEL
  597
• WLTP - Pure Electric Range (km) - Low
  680
• WLTP - Pure Electric Range (km) - Low - TEH
  679
• WLTP - Pure Electric Range (km) - Low - TEL
  680
• WLTP - Pure Electric Range (km) - Medium
  676
• WLTP - Pure Electric Range (km) - Medium - TEH
  671
• WLTP - Pure Electric Range (km) - Medium - TEL
  676
• WLTP - Pure Electric Range (miles) - City
  415
• WLTP - Pure Electric Range (miles) - City - TEH
  413
• WLTP - Pure Electric Range (miles) - City - TEL
  415
• WLTP - Pure Electric Range (miles) - Comb
  329
• WLTP - Pure Electric Range (miles) - Comb - TEH
  322
• WLTP - Pure Electric Range (miles) - Comb - TEL
  329
• WLTP - Pure Electric Range (miles) - Ex High - TEH
  249
• WLTP - Pure Electric Range (miles) - Ex High - TEL
  257
• WLTP - Pure Electric Range (miles) - Extra High
  255
• WLTP - Pure Electric Range (miles) - High
  371
• WLTP - Pure Electric Range (miles) - High - TEH
  365
• WLTP - Pure Electric Range (miles) - High - TEL
  371
• WLTP - Pure Electric Range (miles) - Low
  423
• WLTP - Pure Electric Range (miles) - Low - TEH
  422
• WLTP - Pure Electric Range (miles) - Low - TEL
  423
• WLTP - Pure Electric Range (miles) - Medium
  420
• WLTP - Pure Electric Range (miles) - Medium - TEH
  417
• WLTP - Pure Electric Range (miles) - Medium - TEL
  420

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  Not Available
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  0.0
• Badge Power
  340
• Based On ID
  Not Available
• Coin Description
  Not Available
• Coin Series
  Premium
• Generation Mark
  7
• Insurance Group 1 - 50 Effective January 07
  32E
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  89
• NCAP Child Occupant Protection %
  86
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  80
• NCAP Safety Assist %
  72
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  999999
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Timing Belt Interval Frequency - Months
  Not Available
• Timing Belt Interval Mileage
  Not Available
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  5.3
• Engine Power - BHP
  340
• Engine Power - KW
  250
• Engine Torque - LBS.FT
  501
• Engine Torque - MKG
  69.2
• Engine Torque - NM
  679
• Top Speed
  112

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/50 R20
• Tyre Size Rear
  255/45 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  AERO
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1639
• Height (including roof rails)
  Not Available
• Length
  4468
• Wheelbase
  2767
• Width
  1871
• Width (including mirrors)
  2063

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2740
• Luggage Capacity (Seats Down)
  1417
• Luggage Capacity (Seats Up)
  445
• Max. Loading Weight
  561
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  1200
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  2179
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11
