CUPRA TERRAMAR HATCHBACK

Emissions - ICE

• HC+NOx
  Not Available
• NOx
  0.017
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  137
• WLTP - CO2 (g/km) - Comb - TEH
  149
• WLTP - CO2 (g/km) - Comb - TEL
  137
• WLTP - CO2 (g/km) - Extra High
  142
• WLTP - CO2 (g/km) - High
  118
• WLTP - CO2 (g/km) - Low
  181
• WLTP - CO2 (g/km) - Medium
  131

Engine and Drive Train

• CC
  1498
• Compression Ratio
  12.0:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  74.5
• Cylinders - Stroke (mm)
  85.9
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  7 SPEED
• Number of Valves
  16
• Transmission
  SEMI-AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  6
• WLTP - FC (l/100km) - Comb - TEH
  6.5
• WLTP - FC (l/100km) - Comb - TEL
  6
• WLTP - FC (l/100km) - Extra High
  6.2
• WLTP - FC (l/100km) - High
  5.2
• WLTP - FC (l/100km) - Low
  7.9
• WLTP - FC (l/100km) - Medium
  5.7
• WLTP - MPG - Comb
  47.1
• WLTP - MPG - Comb - TEH
  43.5
• WLTP - MPG - Comb - TEL
  47.1
• WLTP - MPG - Extra High
  45.6
• WLTP - MPG - High
  54.3
• WLTP - MPG - Low
  35.8
• WLTP - MPG - Medium
  49.6

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.5
• Badge Power
  150
• Based On ID
  Not Available
• Coin Description
  eTSI
• Coin Series
  Tribe Edition
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  23E
• NCAP Adult Occupant Protection %
  89
• NCAP Child Occupant Protection %
  87
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  82
• NCAP Safety Assist %
  76
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  24
• Service Interval Mileage
  18600
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  90000
• Standard manufacturers warranty - Years
  5
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  9.3
• Engine Power - BHP
  150
• Engine Power - KW
  110
• Engine Power - RPM
  5000
• Engine Torque - LBS.FT
  184
• Engine Torque - MKG
  25.5
• Engine Torque - NM
  250
• Engine Torque - RPM
  1500
• Top Speed
  127

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

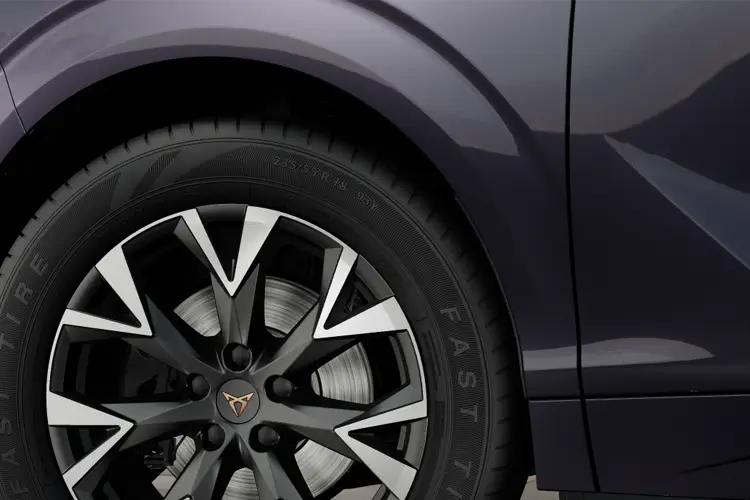

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  255/40 R20
• Tyre Size Rear
  255/40 R20
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1584
• Length
  4519
• Wheelbase
  2681
• Width
  1863

Weight and Capacities

• Fuel Tank Capacity (Litres)
  55
• Gross Vehicle Weight
  2180
• Luggage Capacity (Seats Down)
  642
• Luggage Capacity (Seats Up)
  540
• Max. Loading Weight
  617
• Max. Towing Weight - Braked
  1800
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1563
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.5
