CUPRA FORMENTOR ESTATE

Emissions - ICE

• HC+NOx
  Not Available
• NOx
  0.026
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  230
• WLTP - CO2 (g/km) - Comb - TEH
  231
• WLTP - CO2 (g/km) - Comb - TEL
  230
• WLTP - CO2 (g/km) - Extra High
  217
• WLTP - CO2 (g/km) - High
  193
• WLTP - CO2 (g/km) - Low
  351
• WLTP - CO2 (g/km) - Medium
  228

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  2480
• Compression Ratio
  10.0:1
• Cylinder Layout
  IN-LINE
• Cylinders
  5
• Cylinders - Bore (mm)
  82.5
• Cylinders - Stroke (mm)
  92.8
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  DIRECT INJECTION
• Gears
  7 SPEED
• Number of Valves
  20
• Transmission
  SEMI-AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  10.1
• WLTP - FC (l/100km) - Comb - TEH
  10.2
• WLTP - FC (l/100km) - Comb - TEL
  10.1
• WLTP - FC (l/100km) - Extra High
  9.6
• WLTP - FC (l/100km) - High
  8.5
• WLTP - FC (l/100km) - Low
  15.5
• WLTP - FC (l/100km) - Medium
  10
• WLTP - MPG - Comb
  28
• WLTP - MPG - Comb - TEH
  27.7
• WLTP - MPG - Comb - TEL
  28
• WLTP - MPG - Extra High
  29.4
• WLTP - MPG - High
  33.2
• WLTP - MPG - Low
  18.2
• WLTP - MPG - Medium
  28.2

General

• Alternative Fuel Qualifying
  No
• Badge Engine CC
  2.5
• Badge Power
  390
• Based On ID
  Not Available
• Coin Description
  TSI
• Coin Series
  VZ5
• Insurance Group 1 - 50 Effective January 07
  40E
• NCAP Adult Occupant Protection %
  91
• NCAP Child Occupant Protection %
  86
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  79
• NCAP Safety Assist %
  77
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  90000
• Standard manufacturers warranty - Years
  5
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  4.2
• Engine Power - BHP
  390
• Engine Power - KW
  287
• Engine Power - RPM
  5700
• Engine Torque - LBS.FT
  354
• Engine Torque - MKG
  48.9
• Engine Torque - NM
  480
• Engine Torque - RPM
  2250
• Top Speed
  174

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  255/35 R20
• Tyre Size Rear
  255/35 R20
• Tyre Size Spare
  TYRE REPAIR KIT

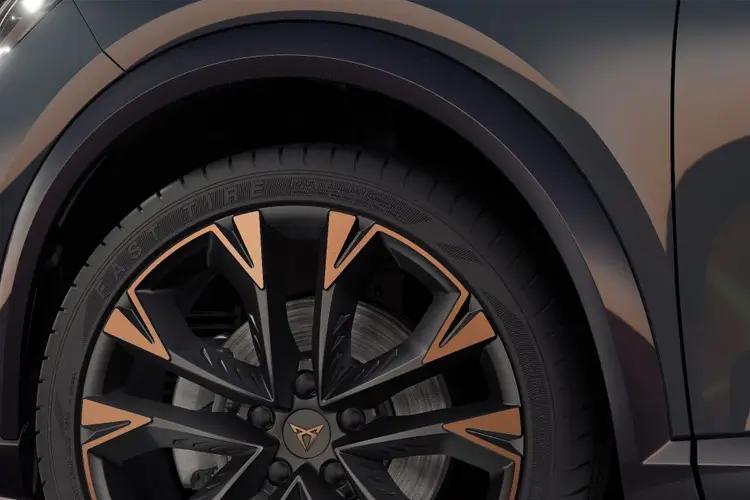

• Wheel Style
  COPPER
• Wheel Type
  20" ALLOY

Vehicle Dimensions

• Height
  1505
• Height (including roof rails)
  Not Available
• Length
  4484
• Wheelbase
  2681
• Width
  1852

Weight and Capacities

• Fuel Tank Capacity (Litres)
  55
• Gross Vehicle Weight
  2140
• Luggage Capacity (Seats Up)
  410
• Max. Loading Weight
  514
• Minimum Kerbweight
  1626
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11
