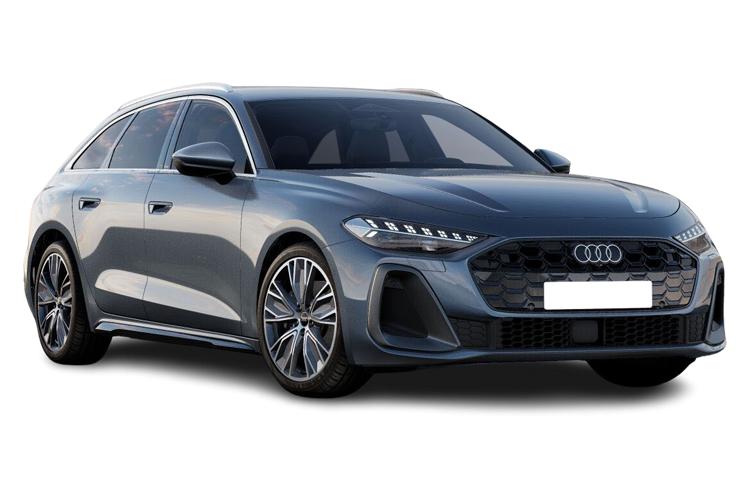

AUDI A5 DIESEL AVANT

Emissions - ICE

• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  138
• WLTP - CO2 (g/km) - Comb - TEH
  139
• WLTP - CO2 (g/km) - Comb - TEL
  137

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1968
• Compression Ratio
  15.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  81
• Cylinders - Stroke (mm)
  95.5
• Fuel Delivery
  COMMON RAIL
• Gears
  7 SPEED
• Number of Valves
  16
• Transmission
  SEMI-AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  5.2
• WLTP - FC (l/100km) - Comb - TEH
  5.3
• WLTP - FC (l/100km) - Comb - TEL
  5.2
• WLTP - MPG - Comb
  54.3
• WLTP - MPG - Comb - TEH
  53.3
• WLTP - MPG - Comb - TEL
  54.3

General

• Alternative Fuel Qualifying
  No
• Badge Engine CC
  2.0
• Badge Power
  204
• Based On ID
  Not Available
• Coin Description
  TDI Quattro 204
• Coin Series
  Black Edition
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  36E
• NCAP Adult Occupant Protection %
  87
• NCAP Child Occupant Protection %
  88
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  78
• NCAP Safety Assist %
  77
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  6.9
• Engine Power - BHP
  204
• Engine Power - KW
  150
• Engine Power - RPM
  3800
• Engine Torque - LBS.FT
  295
• Engine Torque - MKG
  40.8
• Engine Torque - NM
  400
• Engine Torque - RPM
  1750
• Top Speed
  146

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  245/40 R19
• Tyre Size Rear
  245/40 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  5 TWIN V SPOKE
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height
  Not Available
• Height (including roof rails)
  1476
• Length
  4835
• Wheelbase
  2902
• Width
  1860
• Width (including mirrors)
  2099

Weight and Capacities

• Fuel Tank Capacity (Litres)
  60
• Gross Vehicle Weight
  2490
• Luggage Capacity (Seats Down)
  1396
• Luggage Capacity (Seats Up)
  448
• Max. Loading Weight
  590
• Max. Towing Weight - Braked
  1800
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1900
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  12.1
