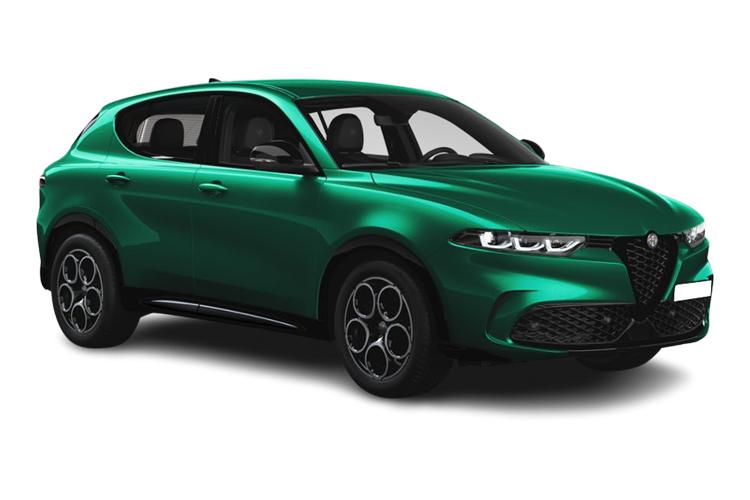

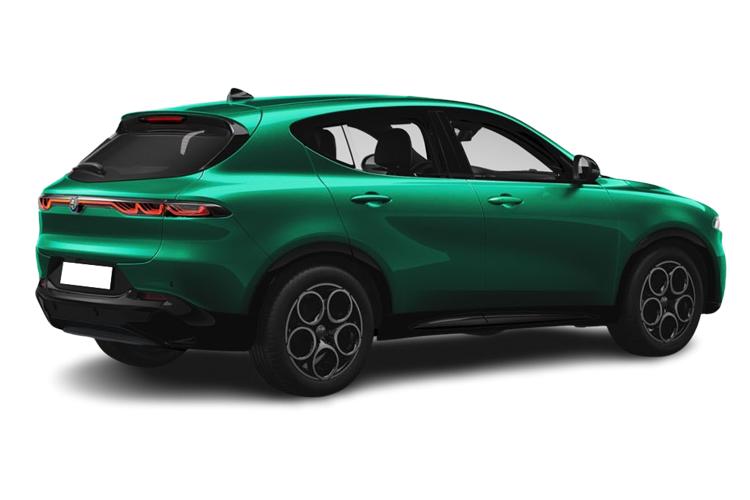

ALFA ROMEO TONALE HATCHBACK

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  129
• WLTP - CO2 (g/km) - Comb - TEH
  131
• WLTP - CO2 (g/km) - Comb - TEL
  129

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1469
• Compression Ratio
  12.5:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  71.2
• Cylinders - Stroke (mm)
  92.2
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  7 SPEED
• Number of Valves
  16
• Transmission
  SEMI-AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  5.7
• WLTP - FC (l/100km) - Comb - TEH
  5.8
• WLTP - FC (l/100km) - Comb - TEL
  5.7
• WLTP - MPG - Comb
  49.6
• WLTP - MPG - Comb - TEH
  48.7
• WLTP - MPG - Comb - TEL
  49.6

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
  1.5
• Badge Power
  160
• Based On ID
  Not Available
• Coin Description
  MHEV
• Coin Series
  Sprint
• Generation Mark
  1
• Insurance Group 1 - 50 Effective January 07
  28E
• Manufacturers Corrosion Perforation Guarantee - Years
  8
• Manufacturers Paintwork Guarantee - Years
  3
• NCAP Adult Occupant Protection %
  83
• NCAP Child Occupant Protection %
  85
• NCAP Overall Rating - Effective February 09
  5
• NCAP Pedestrian Protection %
  67
• NCAP Safety Assist %
  85
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  9000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  Unlimited
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  8.8
• Engine Power - BHP
  160
• Engine Power - KW
  118
• Engine Power - RPM
  5750
• Engine Torque - LBS.FT
  177
• Engine Torque - MKG
  24.5
• Engine Torque - NM
  240
• Engine Torque - RPM
  1500
• Top Speed
  131

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/50 R18
• Tyre Size Rear
  235/50 R18
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  DARK FINISH DIAMOND CUT
• Wheel Type
  18" ALLOY

Vehicle Dimensions

• Height
  1601
• Height (including roof rails)
  Not Available
• Length
  4528
• Wheelbase
  2636
• Width
  1841
• Width (including mirrors)
  2082

Weight and Capacities

• Fuel Tank Capacity (Litres)
  55
• Gross Vehicle Weight
  2135
• Luggage Capacity (Seats Down)
  1550
• Luggage Capacity (Seats Up)
  500
• Max. Loading Weight
  610
• Max. Roof Load
  50
• Max. Towing Weight - Braked
  1500
• Max. Towing Weight - Unbraked
  700
• Minimum Kerbweight
  1525
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  11.57
